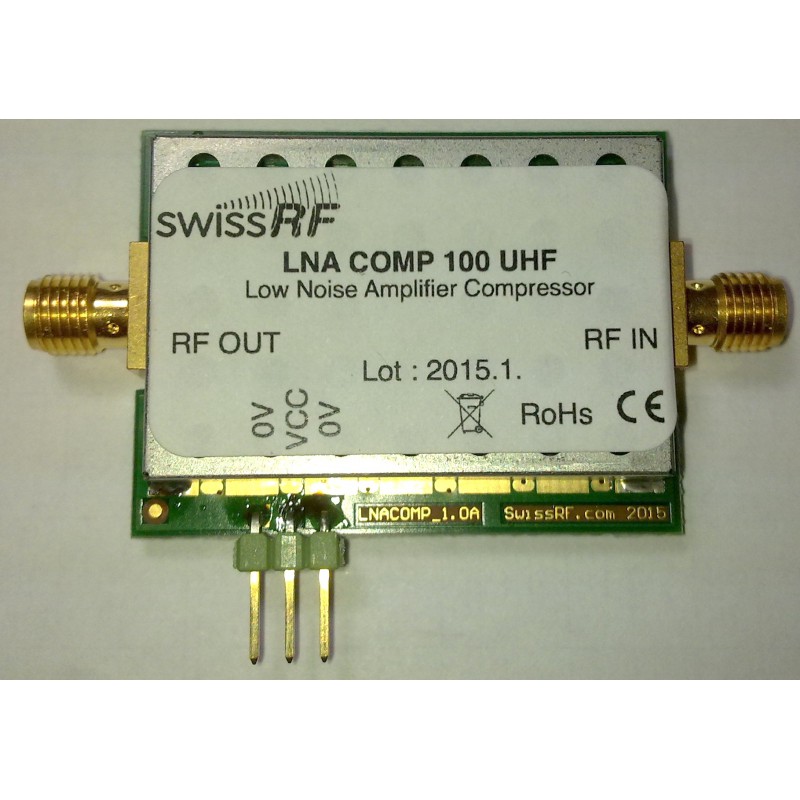

Low Noise Amplifier Compressor.
LNA especially designed for repeater and the DR-1 from Yaesu.
Improve the sensitivity of the DR-1X up to -127 dBm C4FM, -126 dBm FM !
Available in VHF version, or UHF version.
9 Pièce Pièces
Warning: Last items in stock!
- Improve the sensitivity of the DR-1X up to -127 dBm C4FM, -126 dBm FM !
- Heavy duty 20dBm input (100mW) for max -10dBm out.
- Protects input of the reciever from strong signals.
- Especially designed for repeater.
- Low noise figure <0.7dB.
- Gain 14dB+-1dB
- Power supply 6-16V 75mA
